RS-510MG

RS-510MG VHF Fixed Marine Radio with GPS

Original price was: $80.00.Current price is: $60.00.

o Built-in GNSS Module, Support GPS,GLONAS,SBAS Satellite-based Augmentation System (WAAS/EGNOS/MSAS/GAGAN)

o Small Size for Easy Installation

o NMEA Formats (In): RMC, GGA, GNS, GLL, VTG

o NMEA Formats (Out): DSC, DSE, RMC, GSA, GSV

o Dual Receiver, Independent DSC Dedicated Receiver

o Manually Input GPS Latitude and Longitude and Time

o IPX7 Waterproof Construction (1m Depth of Water for 30 Minutes)

o Speaker Vibration Draining Function

o Medical Transport Call and Ship and Aircraft

o Weather Channel Alarm

o Dual/Tri-watch Functions

o Scan: Normal Scan and Priority Scan

o DSC Call Reception and Transmission Records Can be Queried

o Standard NMEA Interface (RS-422 Protocol)

o Full Dot Matrix Display

o Channel Number Display Digits Selectable: 3 Digits(01B)/ 4 Digits(2001)

o Simple Combination of Arrow Keys and Programmable Soft Keys for Smooth Operation

o Support Latest Marine Channel Standards and DSC Protocol Standards.

o DSC Distress Cals in 11 Categories,All DSC Calls in 3 Security Categories

Standard Accessories

RS 510MG 3

Feature

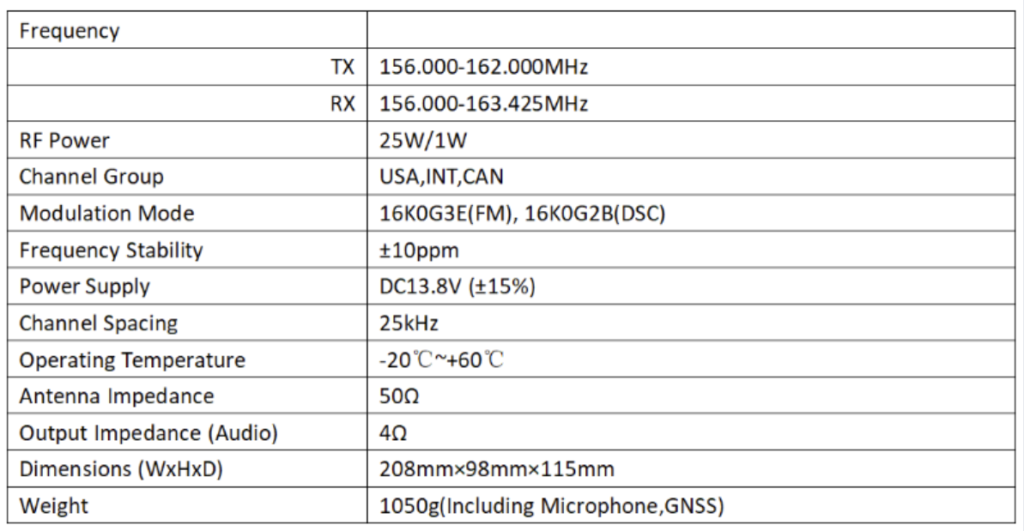

o Frequency: TX: 156.000-162.000MHz

                        RX: 156.000-163.425MHz

o RF Power: 25W/1W

o Channel Group: USA,INT,CAN

o Modulation Mode: 16K0G3E(FM), 16K0G2B(DSC)

o Frequency Stability: ±10ppm

o Power Supply: DC13.8V (±15%)

o Channel Spacing: 25kHz

o Operating Temperature: -20℃~+60℃

o Antenna Impedance: 50Ω

o Output Impedance (Audio): 4Ω

o Dimensions (WxHxD): 208×98×115mm

o Weight: 1050g(Including Microphone,GNSS)
